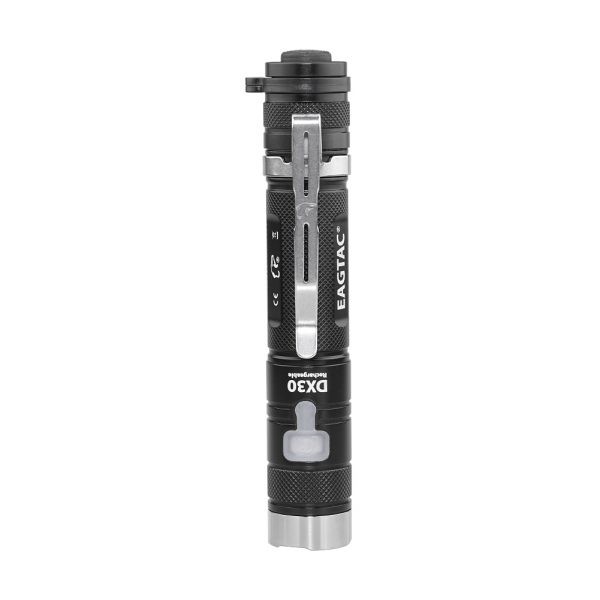

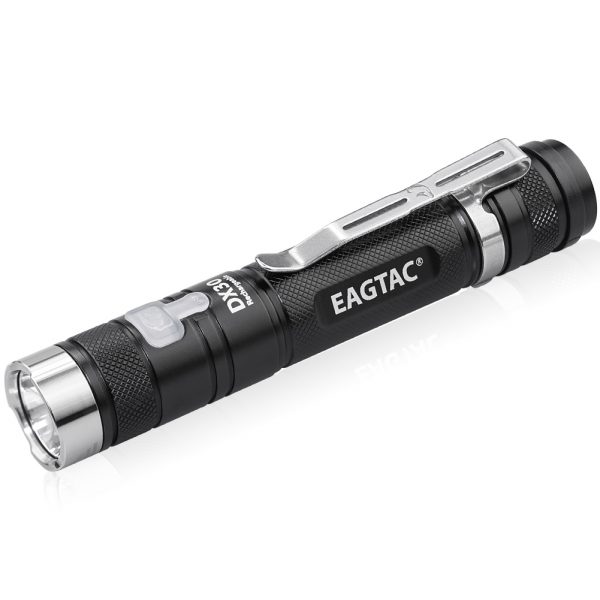

DX30LC2-R

  • 1160 LED lumen powered by XP-L HI V3 LED
  • Five brightness levels; Three hidden AUX modes; Instant MAX/MIN output
  • Built-in charger; Charging level and battery level report system
  • Side switch + forward clicky tailcap
  • Uses protected 18650 li-ion battery (included)
  • 314 yards / 288 meters maximum beam distance
  • Up to 1.5 hrs on MAX output, 200 hrs on low output
Compare
Category:

Description

Additional information

Performance
LED

CREE XP-L HI V3 Cool White LED

Max output

1160 LED lumen /905 ANSI lumen

Center lux @ 1 meter

20,800 lux

Beam distance

314 yards / 288 meters

Output levels

1160-980/590/221/77/9 LED lumen /905-790/475/178/62/7 ANSI lumen

Runtime

1.5/2.8/8.5/28/200+ hours

Battery
Battery Type

18650*1 | CR123A*2

Battery included

Built-in rechargeable

Operating voltage

2.7V – 6V

Battery requirement

Control
Control Type

Hidden auxiliary outputs

Disorienting Strobe/Beacon (1.67Hz)/S.O.S.

Dimensions
Body Diameter

0.85 inches (22 mm)

Head Diameter

0.9 inches (22.5 mm)

Length

5.2 inches (132 mm)

Weight w/o battery

2.1 ounces (60 grams)

Weight w/ battery

3.7 ounces (106 grams)

Constructions
Flashlight Body Material

Lens

Reflector

Light textured aluminum reflector

Waterproof

IPX-8

Optional LED1
LED (1)

CREE XP-L HI V2 Neutral White LED

Max output (1)

1079 LED lumen / 842 ANSI lumen

Center lux @ 1 meter (1)

Beam distance (1)

Output levels (1)

1079-911/549/206/72/8.4 LED lumen / 842-735/442/166/58/6.5 ANSI lumen

Runtime (1)

1.5/2.8/8.5/28/200+ hours

Picture gallery: Download
User manual: Download



How to use?

Basic operations:

  • Turn on the light at MAX output by pressing the tailcap button until it clicks.
  • Turn on the light at LOW output by holding the side switch button while pressing the tailcap button until it clicks.
  • For momentary on function, slightly press the tailcap button
  • To switch between different brightness levels, press the side button switch w/ flashlight on
  • To enter hidden auxiliary mode, press and hold the side button switch for 3 seconds w/ flashlight on



Battery Charging:

  • Remove the waterproof cover and insert the charging cable to charge the battery. User must turn on the flashlight switch at the tailcap to charge.
    (The flashlight will switch off the LED output during charge automatically until the charging cable is disconnected.)
  • The indicator may start flashing when user plug in the charging cable (without turning on the tailacp switch). Switch on the tailcap switch to start charging and the charging indicator will reflect the current charging level.

Includes
