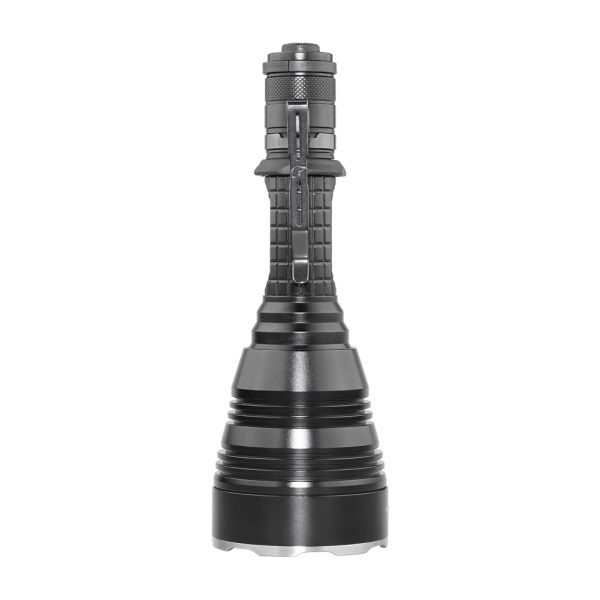

M30LC2

  • 1348 LED lumen powered by XM-L2 U4 LED
  • Twist head to choose level, pre-select any output level (4 levels) before turning on, seven hidden AUX outputs
  • Regular mode (3+1 brightness levels) or tactical mode (Two brightness levels + strobe)
  • Tactical forward clicky on/off tailcap switch; Tail strobe feature (ON/OFF selectable); Energy saving feature

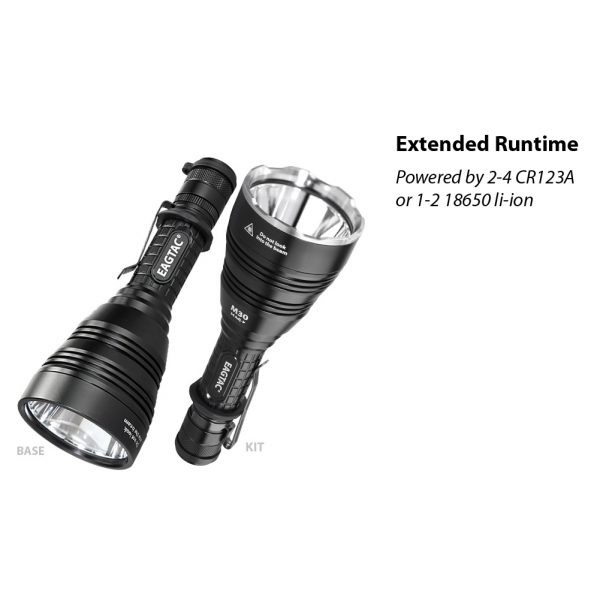

  • Uses protected 1*18650 li-ion battery or 2*18650 / 3*CR123A / 4*CR123A with extender tube
  • 562 yards / 514 meters maximum beam distance
  • Up to 1.8 hrs on MAX output, 200 hrs on low output
Compare
Category:

Description

Additional information

Performance
LED

CREE XM-L2 Cool White U4 LED

Max output

1348 LED lumen / 1102 ANSI lumen

Center lux @ 1 meter

Beam distance

Output levels

1348-1038/596/113/10 LED lumen /1102-855/503/96/8 ANSI lumen

Runtime

1/2.1/13/100+ hours

Battery
Battery Type

18650*1 | CR123A*2 | RCR123A*2

Battery included

Built-in rechargeable

Operating voltage

2.7V – 12V

Battery requirement

Control
Control Type

Hidden auxiliary outputs

Strobe/Disorienting strobe/Flash(Hi)/S.O.S.(Fast)/S.O.S./Beacon/Flash(Lo)

Dimensions
Body Diameter

1 inch (25.4 mm)

Head Diameter

2.5 inches (62 mm)

Length

6.9 inches (176 mm)

Weight w/ battery

8.7 ounces (248 grams)

Constructions
Flashlight Body Material

HAIII hard anodization aerospace aluminum

Lens

Harden waterwhite glass lens with anti-reflective coating on both side

Reflector

Smooth aluminum reflector

Waterproof

IPX-8

Optional LED1
LED (1)

CREE XM-L2 Neutral White U2 LED

Max output (1)

1194 LED lumen /965 ANSI lumen

Center lux @ 1 meter (1)

Beam distance (1)

Output levels (1)

1116-835/478/90/8 LED lumen /902-703/412/78/7 ANSI lumen

Runtime (1)

1.8/3.5/22/200 hours

Optional LED2
LED (2)

CREE XP-L HI V3 (CW) LED

Max output (2)

1150 LED lumen / 1003 ANSI lumen

Center lux @ 1 meter (2)

91,300 lux

Beam distance (2)

659 yards / 604 meters

Output levels (2)

1150-882/510/95/9 LED lumen / 1003-775/455/88/8 ANSI lumen

Runtime (2)

1.8/3.5/22/200 hours (1×18650)

Optional LED3
LED (3)

CREE XP-L HI V2 (NW) LED

Max output (3)

1070 LED lumen / 932 ANSI lumen

Center lux @ 1 meter (3)

Beam distance (3)

Output levels (3)

1070-820/474/88/8 LED lumen / 932-720/441/85/7 ANSI lumen

Runtime (3)

1.8/3.5/22/200 hours (1×18650)

Picture gallery: Download
User manual: Download



How to use?

Basic operations:

  • Turn on the light by pressing the tailcap button until it clicks.
  • Twist the head to select between three output levels.
  • To access the lowest 4th level, turn the head to 3rd level, then 2nd level, and then back to 3rd level within one second.
  • You can pre-selected output level before turning on the light.



Advanced operations:

  • Cycle through auxiliary modes: tight the head (1st level), and loose the head (3rd level) and then tight the head within one second to enter auxiliary setting. Repeat to cycle through all settings. Turn off the light or loose the head to quit.
  • Switching between regular mode and tactical mode (default): Switch to 2nd output level and turn the flashlight on and off for 20 times.
  • Tail strobe feature (off by default): With this enabled, you can access strobe output at the tailcap switch button . To enable (or disable) this function (disable from factory), switch to 1st level and turn the flashlight on and off 20 times (one second or less between each click). With the tailcap strobe setting enabled, a double press of the switch button (within one second) will activate the strobe output.
  • Energy saving feature (on by default): M30LC2 reduces output by 24% after 200 seconds at turbo mode. With this feature turned off, M30LC2 reduces output by 8% instead. To toggle this feature, twist the head to 3rd level and turn the flashlight on and off for 20 times. Once setting has been changed, LED will output 3 seconds at 100% (enable), or 1 second at 100% (disable).



Includes
